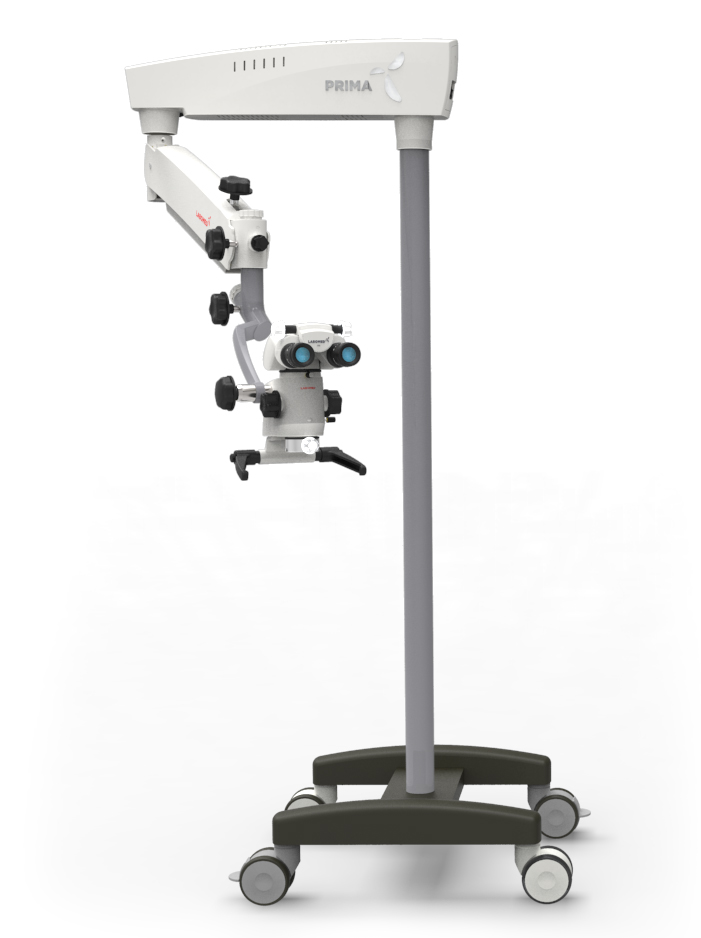

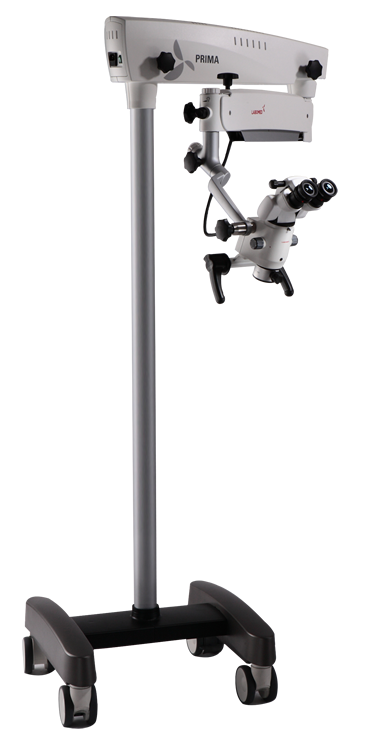

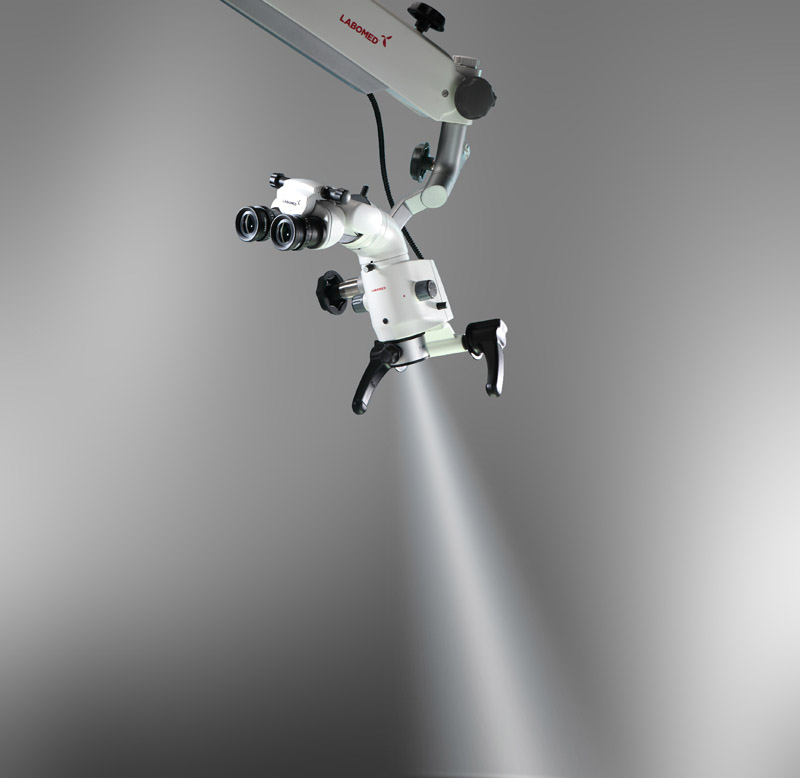

Prima DNT
-
A New Standard in Microdentistry

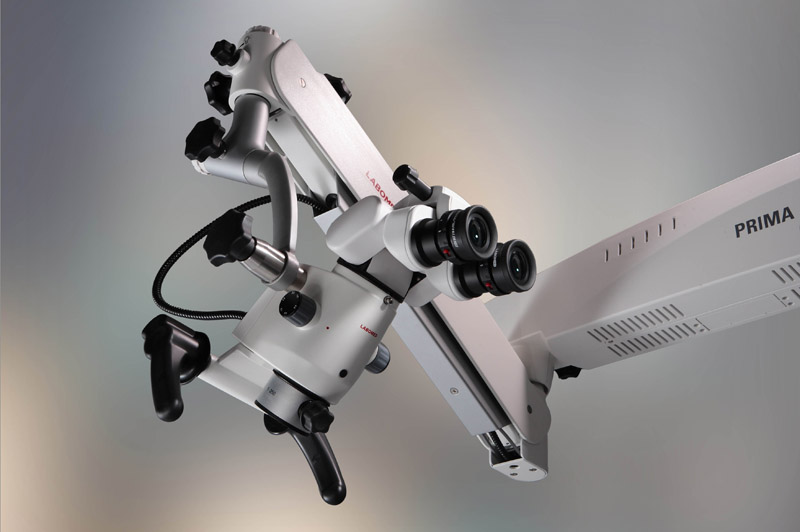

The Prima DNT reflects a performance-driven and modular design for the evolving needs of today's dental professional. With an intelligent LED illumination system, crisp optics, and fluid articulation, the Prima DNT is a technology leader for better dentistry.
PRIMA DNT Advantages:
A super bright LED delivers over 100,000 Lux with a natural daylight color temperature. A run time of up to 60,000 hours eliminates the need for frequent bulb changes. Built-in electronics make for the most compact arm system around.
An Apochromatic optical system produces superior resolution and artifact-free images at every step. Proprietary MaxLite™ coatings promise reflection-free, durable optics.

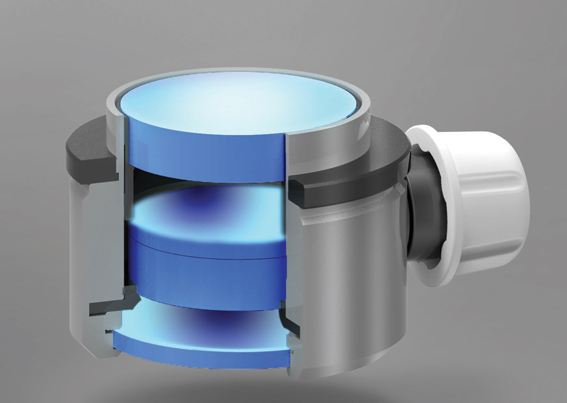

The optional NuVar™ objective delivers variable working distance settings within a focal range of f300-400mm, making the Prima DNT more versatile and user friendly.

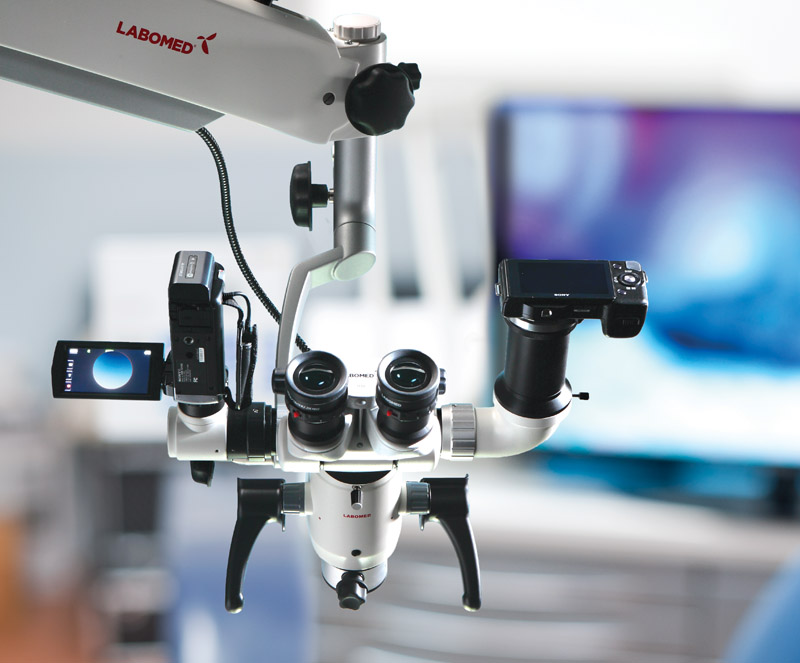

The ProLine™ features a host of digital SLR, video camera, and CCD adapters in addition to the iVu S5 in-line digital solution.
A Rotoplate and Extender Kit make viewing hard-to-see regions of the mouth more comfortable and ergonomic.
-

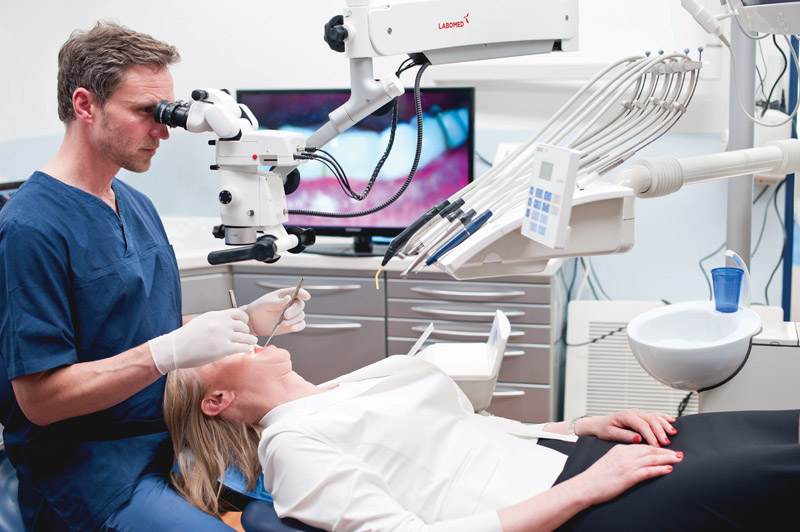

Hear from Dentists who are using Labomed Dental Microscopes in their practice:
“…the quality and price of the equipment is unmatched!“My experience with Labomed [TM] has been nothing short of extraordinary! This has been - hands down - the best experience with any dental company I've ever had. Not to mention the quality and price of the equipment is unmatched! Thank you!
Aaron Palmer, DMD
Smile Design Ellsworth
Ellsworth, Maine, USA
"I do not see any significant difference between Labomed and Zeiss and Global which I have used for years, and I prefer the Labomed microscope."I am an endodontist and I have used the Labomed microscope for about four years and I find the quality of optics, suspension system and light source very good, I do not see any significant difference between Labomed and Zeiss and Global which I have used for years, and I prefer the Labomed microscope.
I recommend that general dentists use microscopes as I find great advantages of the magnification when placing restorations as well as placing delicate sutures. My posture has dramatically improved and backaches have subsided as I do not stress my neck looking down.
Mario Abdennour, DMD, MMScHarvard School of Dental Medicine ,Faculty at the Advanced Graduate Endodontic Program, division of the department of Restorative Dentistry and Biomaterials Sciences
Boston, Mass., USA
“They followed up several times to make sure the install was perfect. I will definitely use them again.“After seeing Labomed [TM] at the AAE convention I called to see what they offered. They were very willing to allow me to try out their mobile model of their microscope. They had it shipped to my location and had a local rep assemble it. After using the microscope, I found it to be comparable to the Zeiss, which I own 4 of, and Global models. Especially with the LED light. They even have an adjustable focal distance that really helps if different people are using the microscope. After deciding on the microscope they allowed me to use the model until the install. I had an issue with the distance from my wall to the patient chair. [They were] able make a new arm which was longer in order to accommodate my space. The install was great with little interruption in my day. They followed up several times to make sure the install was perfect. I will definitely use them again.
Yogesh Patel, DDS
North Dallas Endodontics
Dallas, Texas, USA
“The Labomed Microscope is a high quality piece of equipment at a low price compared to its competition.”I have used the Labomed Microscope for about two years. As one gets older we begin to appreciate how good practice ergonomics and vision assist us in both longevity and the quality of our dentistry. The Labomed Microscope is a high quality piece of equipment at a low price compared to its competition.
Bruce Crispin, DDS, MS
Esthetic Professionals,Founder/CEO
Tarzana, California, USA -
Microscope
Binocular Tube 0-210° tiltable ergonomic head Apochromatic Magnichanger 5 step: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X Eyepiece WF 10X/18 mm with eye guards, diopter adjustment ± 5 mm and diopter lock;optional: WF 12.5X/18 mmWF 10X/18mm with retractable eye guards, diopter adjustment ± 5mm with diopter lock; optional: WF 12.5X/18mmObjective f-250mm, manual fine focus, objective lens protector. Optional: f-300mm; f-400mm; f-200 (fixed); NuVar system which provides continuous focal length adjustment from 300-400mm. Light Source 50W LED; 100,000+ Lux Built-in-Filters Green & Yellow Vertical Movement 550mm Microscope Carriers 120° carrier
Package Contents
Tools for Securing Base and PillarSterilizable Knob CoversNylon Dust CoverAccessories (Optional)
Beam splitters (straight/inclined)Rotoplate and/or extenderProline range of camera/video adaptersNuVar variable working distance objective Spacers and extender armsiVu S5 5MP in-line camera
System Diagram (Prima DNT)

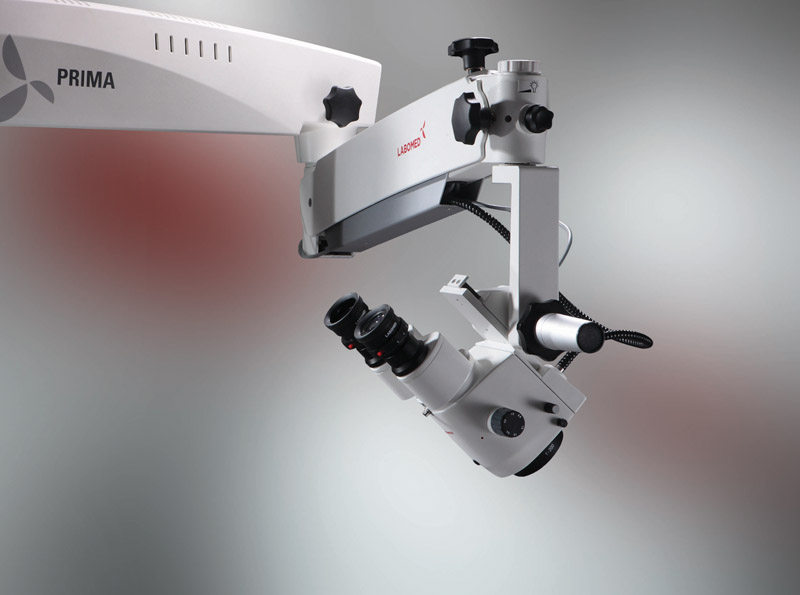

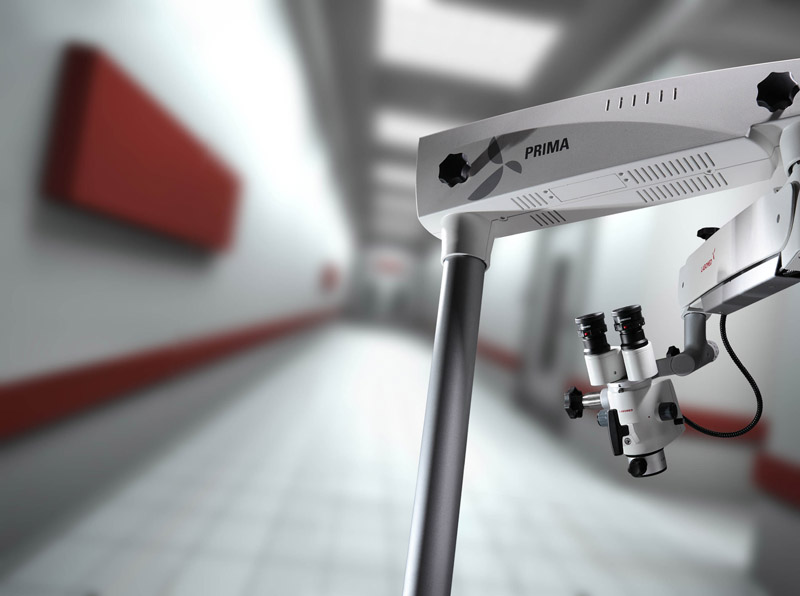

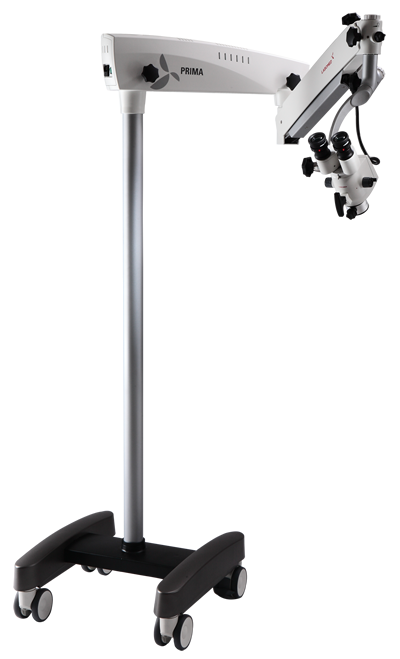

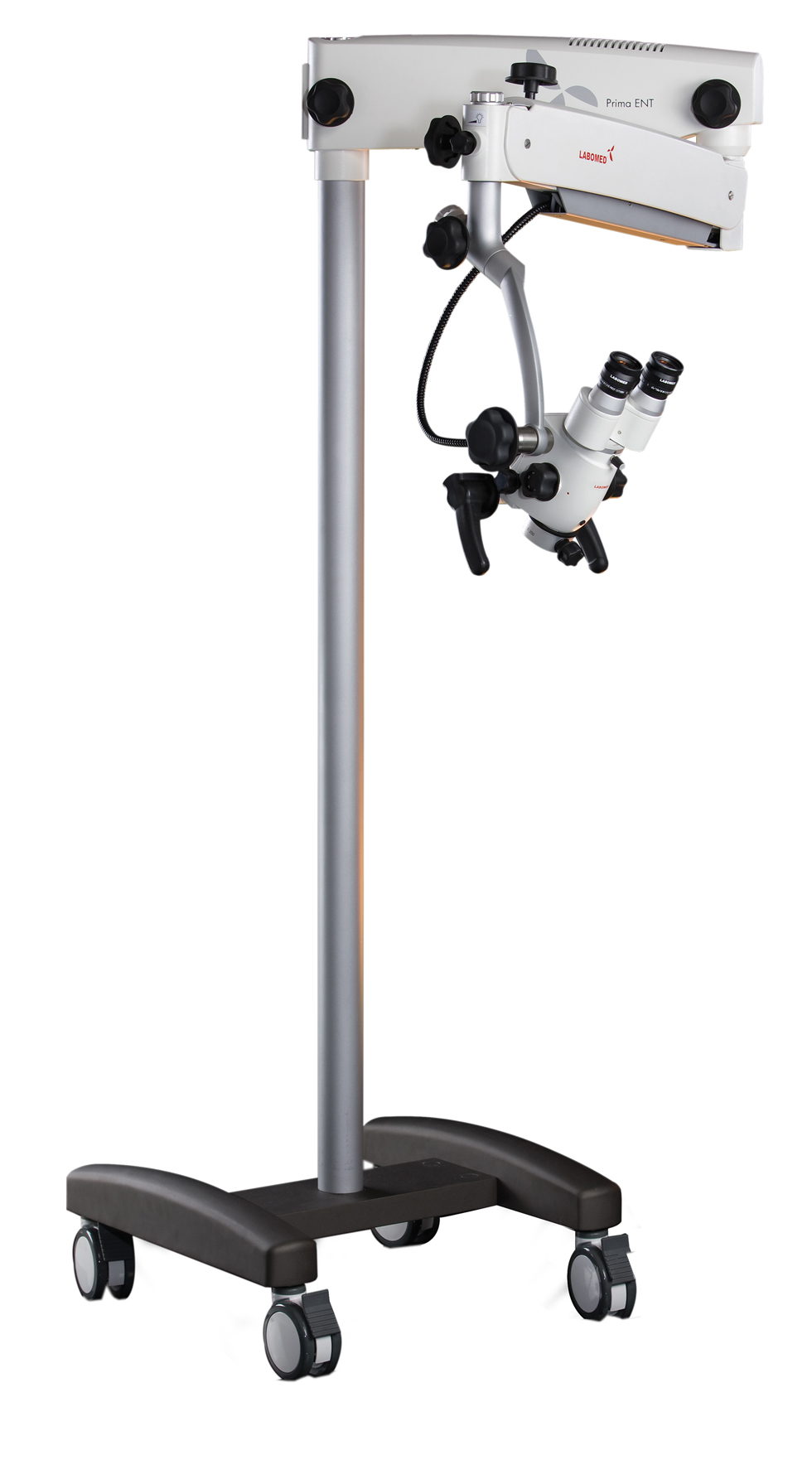

Prima ENT
-
A Performance Driven Design for Ear/Nose/Throat Professionals

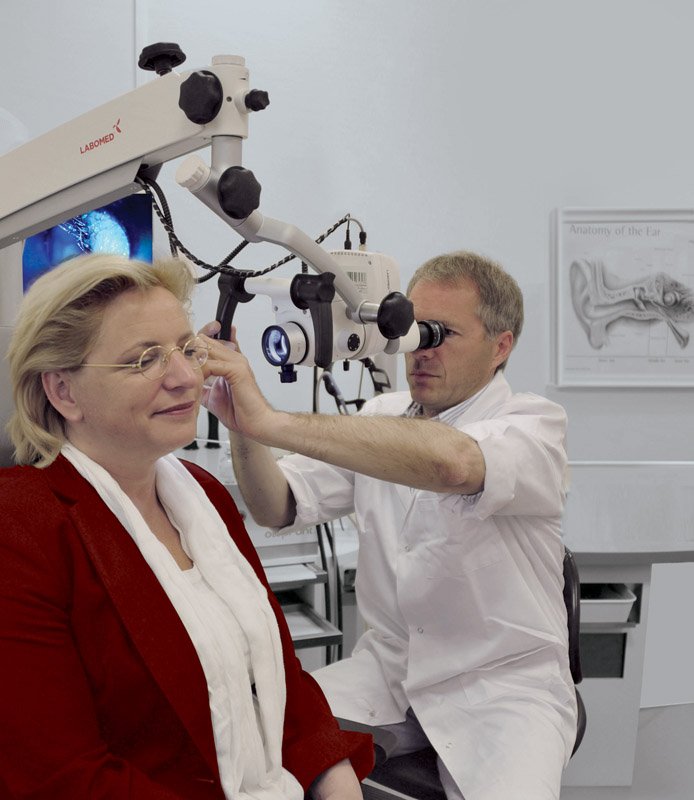

The Prima ENT microscope reflects a performance driven design with modularity in mind for the evolving needs in ear, nose, and throat clinical and surgical routines. With an intelligent illumination system, crystal clear optics, and fluid arm movement, the Prima ENT microscope stands apart as a smart choice.
PRIMA ENT Advantages:
A super bright LED delivers over 100,000 Lux with a natural daylight color temperature. A run time of up to 60,000 hours eliminates the need for frequent bulb changes. Built-in electronics make for the most compact arm system around.
An Apochromatic optical system produces superior resolution and artifact-free images at every step. Proprietary MaxLite™ coatings promise reflection-free, durable optics.
The ProLine™ features a host of digital SLR, video camera, and CCD adapters in addition to the iVu S5 in-line digital solution.
An intelligent LED Park Position makes operation simple when interacting with patients. Raising the arm turns off the illumination; lowering the arm makes the system ready for use again.
-
Microscope
Binocular Tube Straight viewing tube 90°, IPD 50-75mm Apochromatic Magnichanger 5 step: 0.4X, 0.6X, 1.0X, 1.6X and 2.5X Eyepiece WF 10X/18mm with retractable eye guards, diopter adjustment ±5mm with diopter lock; optional: WF 12.5X/18mm Objective f=250 mm; manual fine focusoptions: f=300 mm; f=400 mmf=250mm; manual fine focus options: f=200mm (fixed); f=300mm; f=400mmLight Source 50W LED; 100,000+ Lux Built-in-Filters Green & Yellow Vertical Movement of arm 550mm Microscope carriers 120° carrier
Package Contents
Tools for Securing Base and PillarSterilizable Knob CoversNylon Dust CoverAccessories (Optional)
Assistant viewer bridgeBeam splitters (straight/inclined)Ergonomic viewing tube, tilting 0 - 210 ̊ProLine range of camera adaptersiVu S5 5MP in-line camera solution T-handle kit

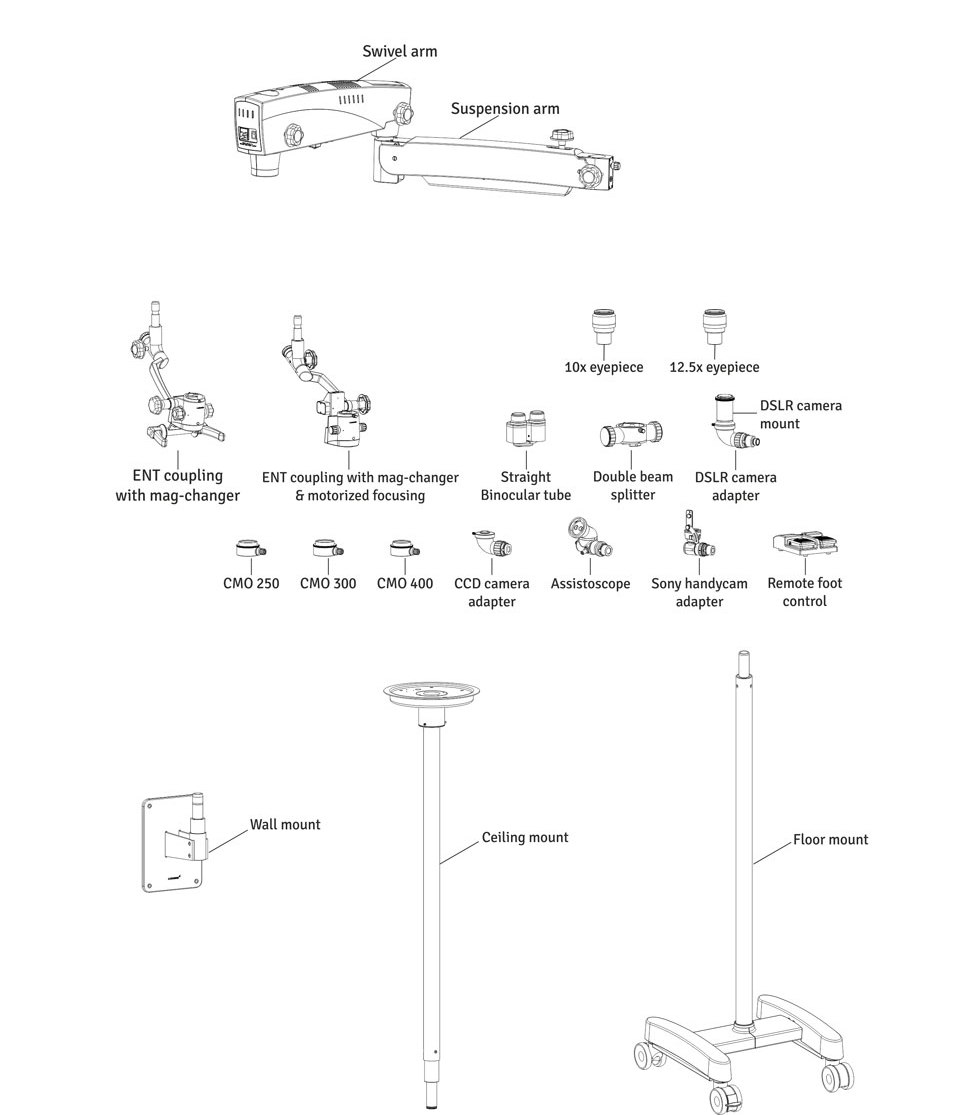

System Diagram (Prima ENT)

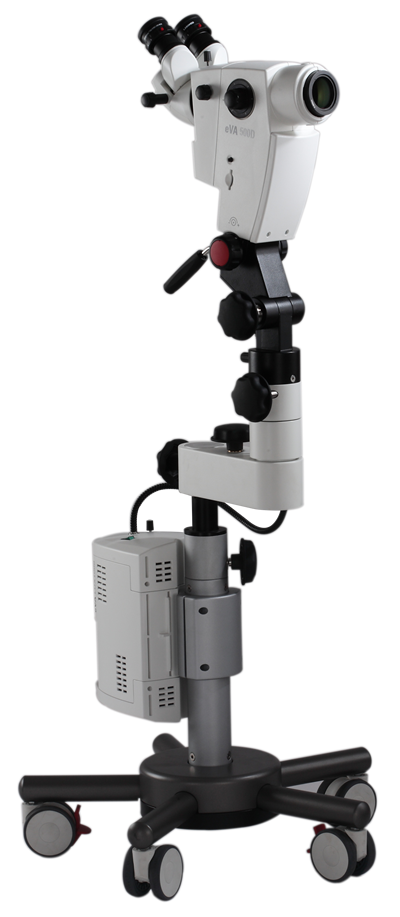

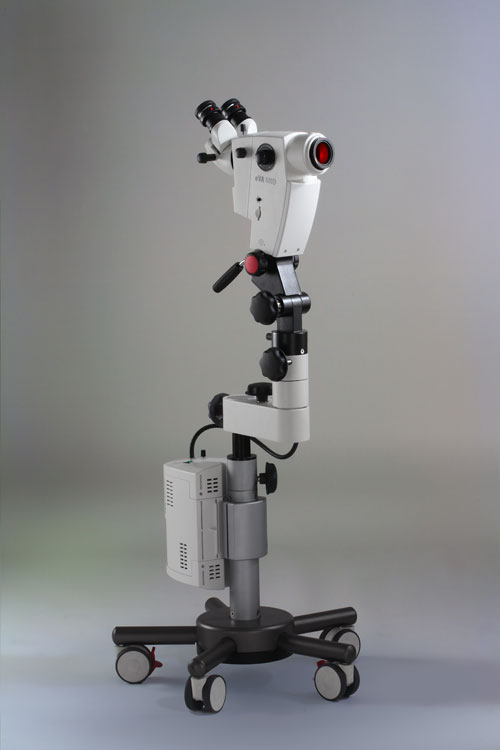

eVA Colposcope
-
Feature Rich, Ergonomic Design Creates a New Standard in Colposcopy
OB/GYNs should be equipped with the best tools to make diagnostic assessments simpler and more accurate. Brilliant optics in the eVA colposcope reveal the most subtle lesions or atypical vascular patterns and provide improved control over biopsies, with sharp details extending all the way to the peripheral margins.
Doctors are further supported by unique features such as an ergonomic control cluster, vertical height adjustment with EZLift, and an onboard 50W LED illuminator for bright, white, and unwavering light.
eVA Advantages:
The eVA colposcope flattens the learning curve with an ergonomic control cluster, including filter change, fine focus and joystick, all positioned at your fingertips. The EZLift z-axis option allows smooth adjustment of the viewing tube height for an ideal viewing posture.

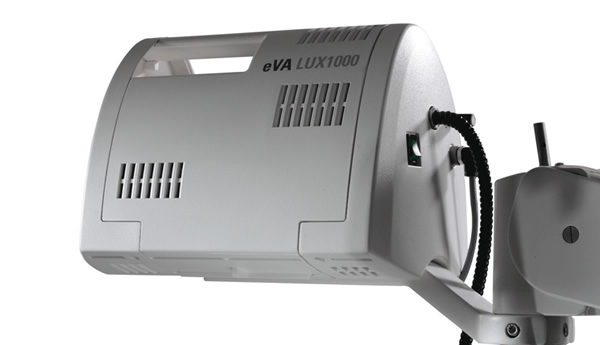

A 50W super bright LED provides lux outputs comparable to Xenon light, but runs cooler and delivers 60,000 hours of bulb life. Operating with a color temperature comparable to daylight, the system ensures bias-free diagnosis.

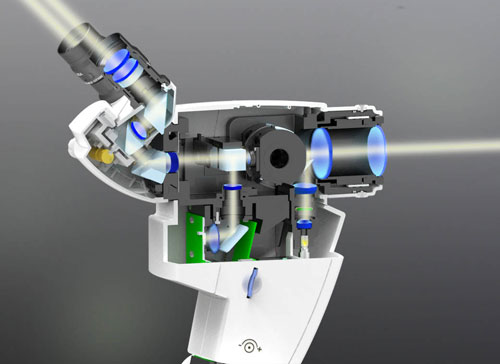

An Apochromatic Galilean optical system produces sharp contrast and resolution at every step. Proprietary MaxLite™ sputtered coatings promise the highest degree of anti-reflective and anti-scratch properties, yielding artifact free and durable optics.
The eVA 500D houses a 5MP HD camera, eliminating camera mounting hassles. Standard features are 1080p live streaming via HDMI, USB connectivity for software interface, and an SD card slot for on-device capture.
The eVA colposcope is not currently available for sale in North America.
-
Microscope
eVA500 Stand Star base stand, lockable wheels Binocular tubes Straight, IPD 50-75 mm optional: 45° inclined Eyepiece WF 10X/18 mm, focusable with retractable eye guards,
diopter adjustment ± 5 mm and diopter lock
Optional: WF 12.5X/18 mmApochromatic magnichanger 5 step: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X Objectives f-300 mm, High contrast aperture optional: f-400 mm Light source eVALUX LED 50W, lamp life up to 60,000 hours Built-in filters Green and yellow Microscope carriers Straight carrier, X-Y and inclination Digital imaging --- Optional accessories Camera, Beam splitter, Monitor arm eVA500D Stand E50 star base stand, lockable wheels with EZLift Binocular tubes 45° inclined, IPD 55-75 mm optional: straight Eyepiece WF 10X/18 mm, focusable with retractable eye guards, diopter adjustment ± 5 mm and diopter lock
Optional: WF 12.5X/18 mmApochromatic magnichanger 5 step: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X Objectives f-300 mm, High contrast aperture optional: f-400 mm Light source eVALUX LED 50W, lamp life up to 60,000 hours Built-in filters Green and Yellow Microscope carriers Straight carrier, X-Y and inclination controls, fine focus Digital imaging 5 MP integrated digital camera with on-device capture button and SD card; USB v2.0 and HDMI (1080p) ports Optional accessories Monitor arm
Package Contents
Tools for Securing Base and PillarSterilizable Knob CoversNylon Dust CoverAccessories (Optional)
Beam splittersProline range of camera adaptersiVu G5 5MP integrated digital camera module System Diagram (eVA)

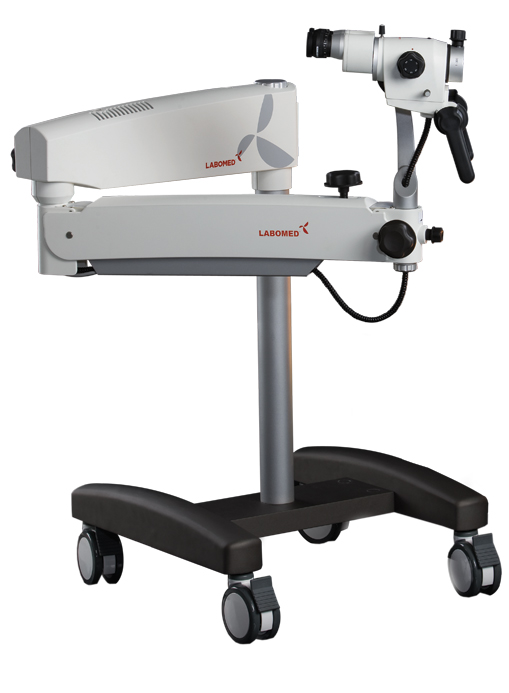

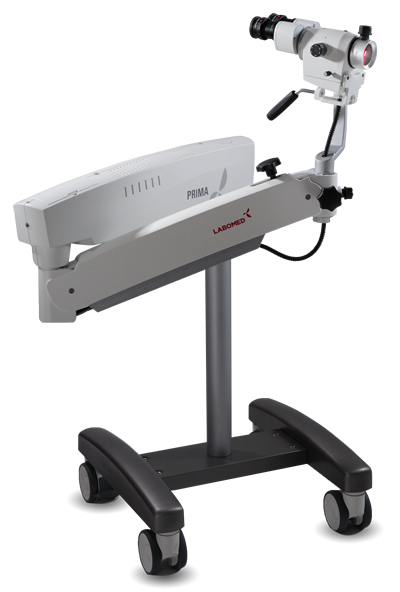

Prima GN
-
Advanced Screening Technology for Early Detection
The Prima GN is an ideal solution for surgical and diagnostic work given its superb optical and mechanical performance, ensuring many years of carefree use. With an intelligent LED illumination system that runs long and cool, an Apochromatic Galilean optical system, and fluid articulation, the Prima GN integrates seamlessly with any OB/GYN practice.
PRIMA GN Advantages:
A super bright 50W LED produces a powerful yet cool field of illumination, with color temperature range closest to natural daylight. With a run time of 60,000 hours of bulb service life, bulb changes and storing spares are no longer a matter of concern. Electronics built directly into the swivel arm make the Prima GN a compact solution.
An Apochromatic Galilean optical system produces sharp contrast and resolution at every step. Proprietary MaxLite™ sputtered coatings promise the highest degree of anti-reflective and anti-scratch properties, yielding artifact free and durable optics. Fine focusing control is provided through a range of long working distance CMOs.
Doctors can use a digital SLR or video camera with the Prima GN, thanks to a wide selection of adapters available through LABOMED's ProLine™. A proprietary iVu G5 camera provides an excellent solution with all-in-one high definition imaging, streaming, and capture options. Real-time streaming can be achieved with a flat panel monitor mounted conveniently to the Prima GN arm.

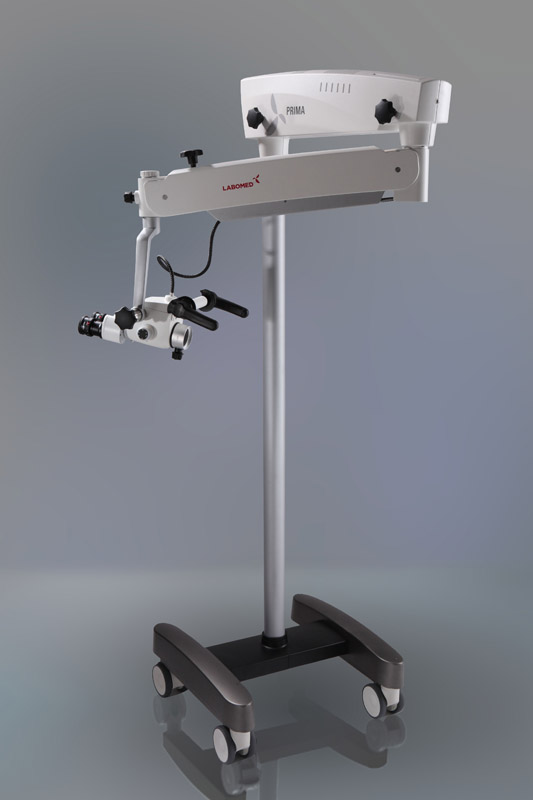

A durable mobile H-stand is easily transported from one room to the next on robust castor wheels, enabling multi-room use and convenient storage. Alternatively, the system can be mounted directly to an exam chair, on a short column for quick diagnostic work, or in an over-the-shoulder floor mount configuration.
The Prima GN is not currently available for sale in North America.
-
Microscope
Binocular Tube straight viewing tube 90°optional: 45° inclined headStraight viewing tube 90°
Optional: 45° inclined headApochromatic Magnichanger 5 step: 0.4X, 0.6X, 1.0X, 1.6X and 2.5X Eyepiece WF 10X/18 mm with retractable eye guards, diopter adjustment
± 5 mm and diopter lock
Optional: 12.5X/18mm; fixed eye guardsObjective f-300, manual fine focus Light Source 50W LED Built-in-Filters Green Vertical Movement 550 mm Microscope carriers Straight carrier Base(Dimensions) 600 mm width, 620 mm length Stand height 984 mm Weight of complete microscope 80 Kg. (approx.) Elevation stroke 570 mm Stand height, horizontal position 775 mm
Package Contents
Tools for Securing Base and PillarSterilizable Knob CoversNylon Dust CoverAccessories (Optional)
Beam splittersProline range of camera adaptersiVu G5 5MP integrated digital camera module
-

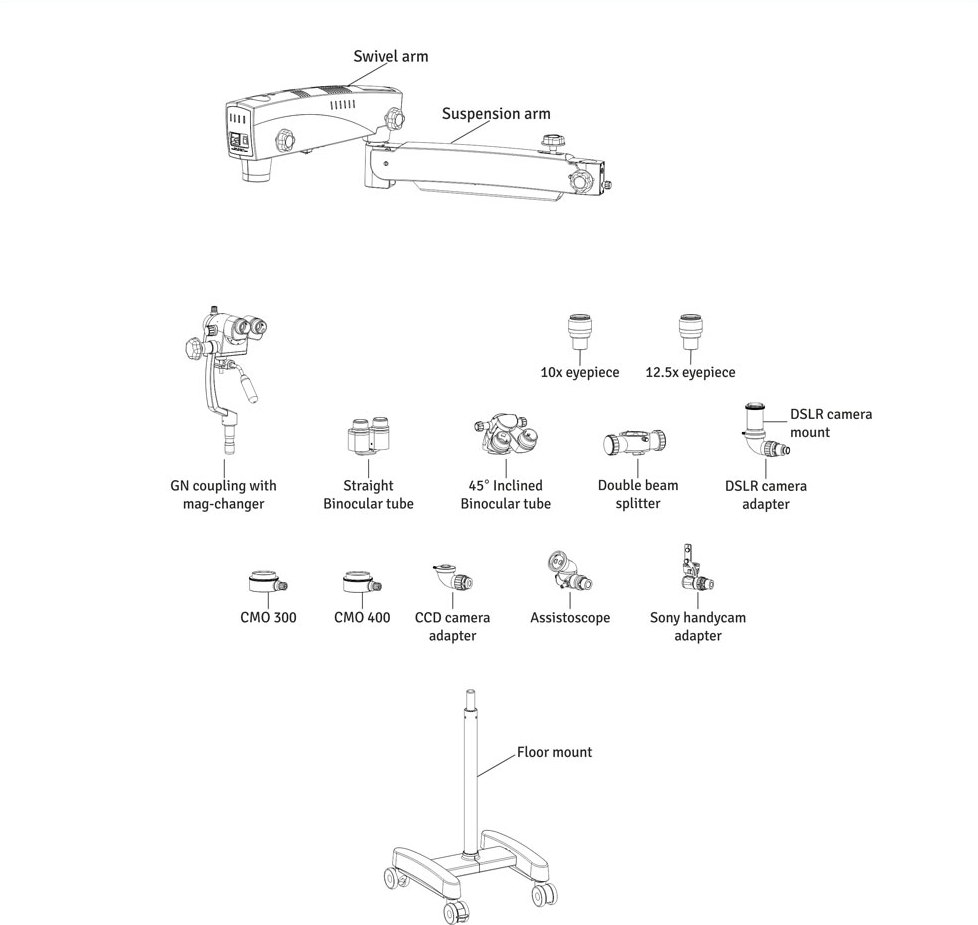

System Diagram (Prima GN)
-

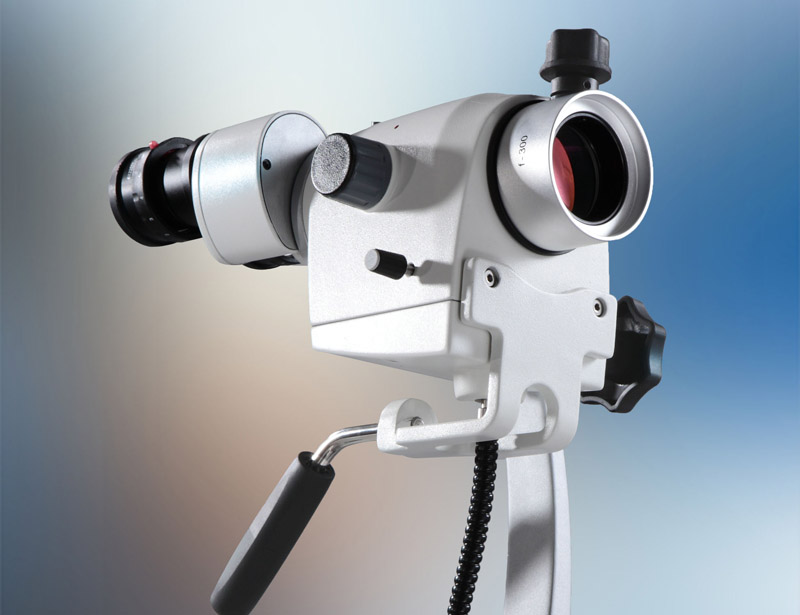

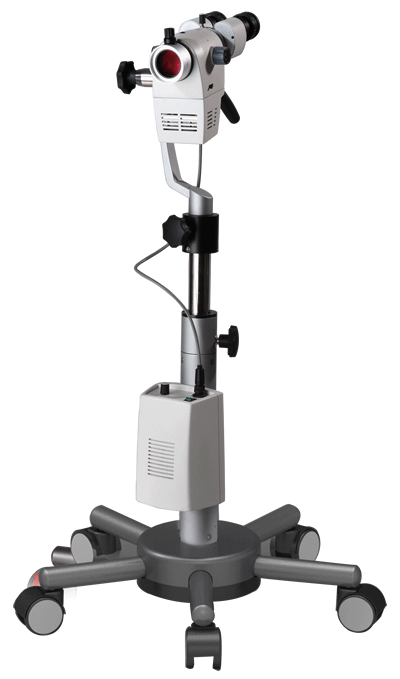

Prima C
-
Delivering Performance and Convenience to Today's OBGYN
The PRIMA C is a compact and versatile solution for surgical and diagnostic colposcopy. A meticulously designed optical system and built-in high power LED provide for a more streamlined user experience. A compact pole stand keeps the Prima C unobtrusive in tight spaces.
Prima C Advantages:
A single 27-watt LED illumination system delivers over 75,000 lux at a color temperature of 3700K. Built into the magnichanger, the LED design makes the system compact, running cool and bright for up to 50,000 hours.
An Apochromatic 5-step optical system produces aberration-free images. Proprietary MaxLite™ coatings promise the highest degree of anti-reflective and scratch resistant properties, illuminating images evenly and without artifacts.
The ProLine™ features a host of digital SLR, video camera, and CCD adapters in addition to the Labomed iVu S5 in-line solution.
This product is not currently available for sale in North America.
-
Microscope
Binocular Tube Straight 90° viewing tube
Optional: 45° inclinedEyepieces WF 10X/18mm with foldable eye guards,
diopter adjustment ± 5mm
Optional: WF 12.5X/18mmMagnichanger WF 10X/18 mm with eye guards, diopter adjustment ± 5 mm and diopter lock;optional: WF 12.5X/18 mm5 step: 0.4X, 0.6X, 1.0X, 1.6X, 2.5XObjective f-300mm, manual focus Illumination 9W LED Built-in Filters Green Vertical Movement of Arm 100mm Power Supply 100-240V, 50/60HZ, 1.6 Amp Optional Accessories ProLine series camera adapters, iVu S5 camera
Weight Microscope with carrier - 2.8kg
Swivel arm - 8kg
Base with pillar - 30kg
-

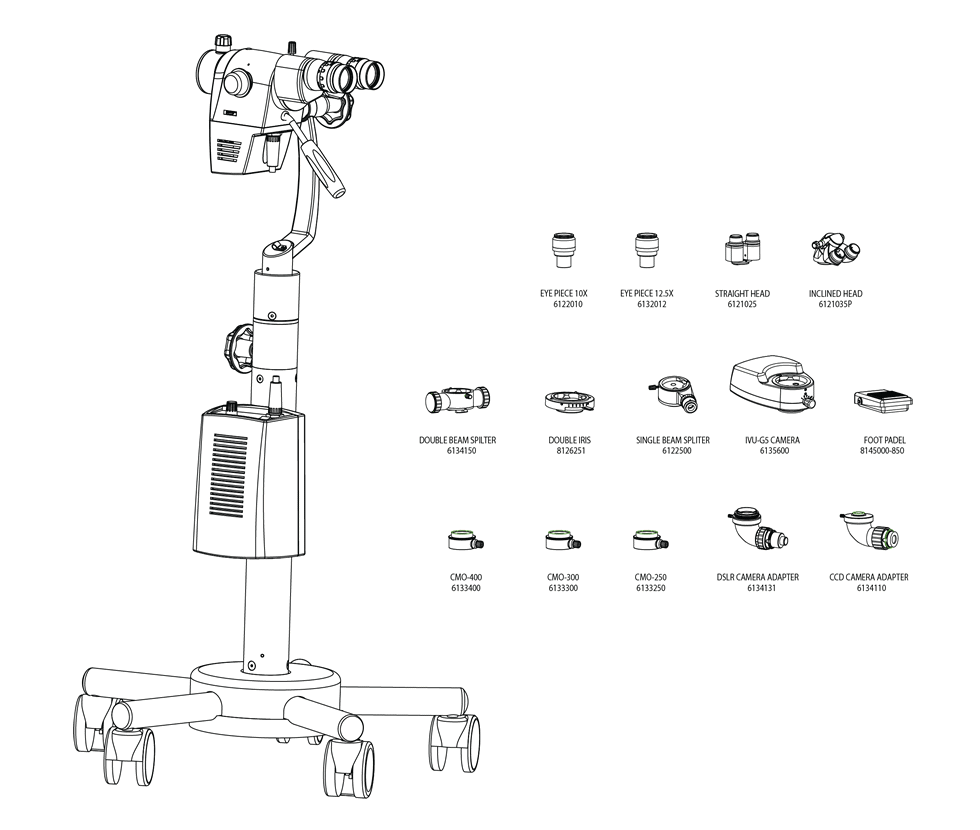

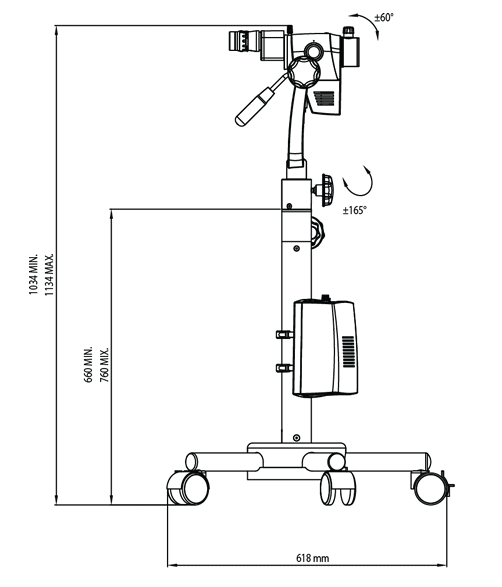

System Diagram (Prima C)
Prima CS
-
Delivering Efficiency, Performance, and Convenience to Today’s OBGYN
The PRIMA CS is a versatile solution for surgical and diagnostic work in gynecology. A meticulously designed optical system and built-in high power LED illumination module come together to provide a more streamlined microscope. A suspension and swivel arm mounted on a stable base brings greater flexibility to both clinical and surgical environments.
Prima CS Advantages:
A single 27-watt LED intelligently drives the illumination system to deliver over 75,000 lux at a carefully selected color temperature of 3700K, making Prima CS’s eye-pleasing illumination the brightest in its class. Built into the magnichanger, the LED design makes the system more compact and runs cool for over 50,000 hours.
An Apochromatic 5-step Galilean optical system produces aberration-free images corrected for all primary wavelengths. Proprietary MaxLite™ coatings promise the highest degree of anti-reflective and scratch resistant properties, illuminating images evenly and without artifacts. Fine focusing control is provided through a range of long working distance CMOs.
To address digital documentation needs, a host of digital SLR, video camera, and CCD adapters are available with the ProLine™ in addition to our proprietary iVu S5 in-line solution.
This product is not currently available for sale in North America.
-
Microscope
Binocular Tube Straight 90° viewing tube
Optional: 45° inclinedEyepieces WF 10X/18mm with foldable eye guards,
diopter adjustment ± 5mm
Optional: WF 12.5X/18mmMagnichanger WF 10X/18 mm with eye guards, diopter adjustment ± 5 mm and diopter lock;optional: WF 12.5X/18 mm5 step: 0.4X, 0.6X, 1.0X, 1.6X, 2.5XObjective f-300 mm, manual focus Illumination 9W LED Built-in Filters Green Vertical Movement of Arm ± 250 mm Power Supply 100-240V, 50/60HZ, 1.6 Amp Optional Accessories Beam splitter, CCD, USB Cameras Weight Microscope with carrier - 2.8kg
Swivel arm - 8kg
Base with pillar - 40kg
-

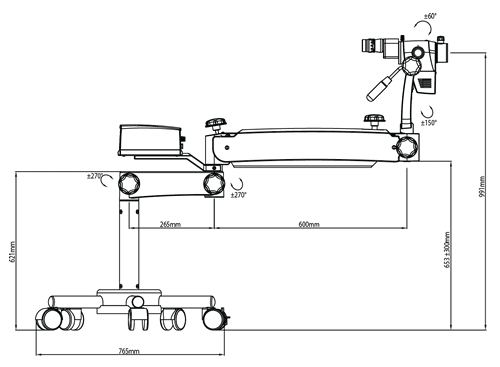

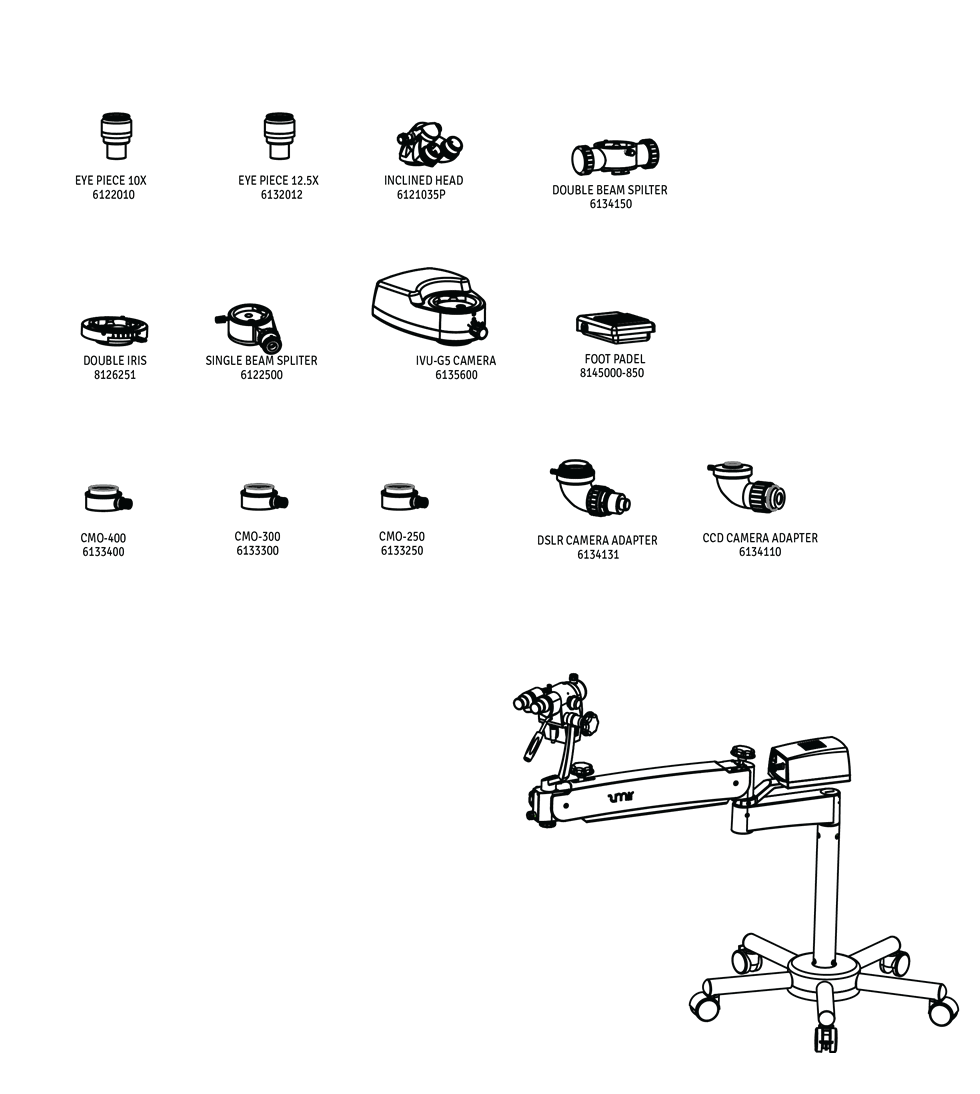

System Diagram (Prima CS)
-
